S Parameters for Linear Simulation and Spice Models for
Non Linear Simulation
AWR USERS
Download S-parameters , AWR schematic Spice Model files and xml file for
AWR users here. (XML library can be accessed directly from AWR program.)
ADS USERS
I. For ADS2009 and above users,
install Library Design Kit within ADS :-
A. Download Poly_Ads_linear for linear
S parameter model library kit. Includes touchstone files and package layouts for Mosfet and GaN transistors.
B. Download Poly_Ads_non-linear for non-linear spice model library kit. Includes package layouts for Mosfet and GaN transistors.
II. For ADS2005 and previous versions.
A. Download Spice Models files
B. Download S-parazmeters files
III. Download GaN Transistors Spice Model files here for ADS
IMPORTANT NOTICE:- ADS2005 and above, MOSN model simulates incorrectly when rd and/or rs values are less than or equal to 0.1 ohms. ADS automatically defaults values of 0.1ohms or less to zero ohms.
OTHER USERS
Below are Touchstone and Pspice format files:-
Download VDMOS S Series S-parameters and P-Spice format Model
files here.
Download LDMOS L Series S-parameters and P-Spice format Model
files here.
Download VDMOS F Series S-parameters and P-Spice format Model
files here.
Download VDMOS P Series S-parameters and P-Spice format model
files here.
Download GaN Transistors S-parameters files here.
Download S-parazmeters files for all users (Touchstone
format) here
Download S-parameters and Spice Model files for
Eagleware users here. See below too.
IMPORTANT NOTICE:- ADS2005 and above, MOSN model simulates incorrectly when rd and/or rs values are less than or equal to 0.1 ohms. ADS automatically defaults values of 0.1ohms or less to zero ohms.
Example design file downloads for ADS:-
A:-Amplifier Design Files:-

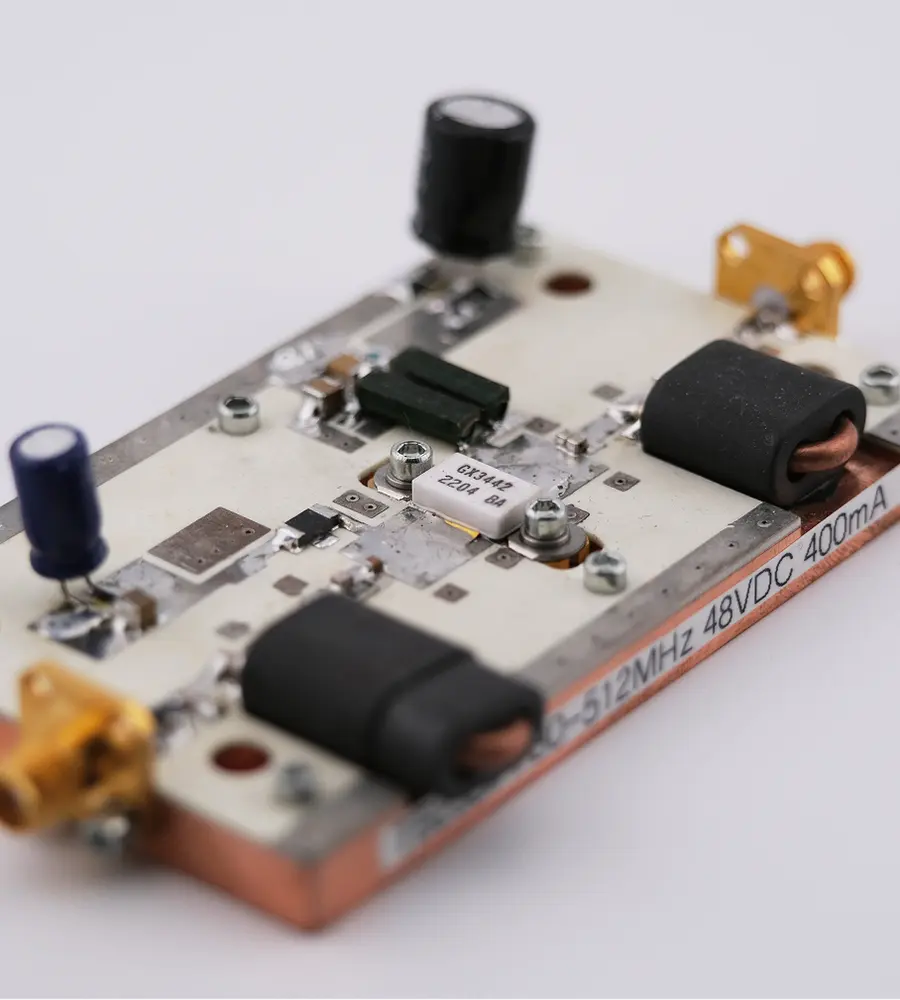

Downlaad TB-221(*.7ads)., TB-221(*.7zap)Broadband 200-2000 Mhz Amp using GaN transistor. GX3442 for ADS2012 and above Windows7
Downlaad TB-222(*.7ads) , TB-222(*.7zap) Broadband 1-1000 Mhz Amp using GaN transistor. GX2441 for ADS 2012 and above Windows7
Downlaad TB-232(*.7ads). Broadband 1000 - 2500 Mhz 30W Amp using GaN transistor. GP2441 for ADS 2012 and above Windows7
Downlaad TB-235(*.7ads). Miltary 30 - 512 Mhz 100W, 20dB Gain, Amp using LDMOS transistor. LR2401 for ADS 2012 and above Windows7
Download TB-160 (*.zap)for ADS 2005 and below or TB-160 (*.7zap) for ADS2011 or TB-160 (*.7zads) for ADS2012 and above Push Pull Broadband 30-512 Mhz
Amp, and associated article. Use this file as basic template for high power amplifier design.
B. Spice Extraction
Download Design file (zap) ADS2005 and below or Design file (*.7zap) ADS2011 or Design file (*.7zads) ADS2012 and above to extract Zin Zout impedance
of transistor from Spice Model. This file contains optimization and goal
parameters set up to tune input and output circuit for maximum power and
gain.
Example design file downloads for Eagleware Genesys users:-
Download Design files to extract Zin Zout
impedance of transistor from Spice Model. This file contains optimization
and goal parameters set up to tune input and output circuit for maximum
power and gain. Use this file as basic template for high power amplifier
design. Our spice models and S parameters can be found in the linear element
library.
| MICROWAVE OFFICE USERS |  |
Our spice models can be found in the non-linear element library.
Download ziolp721b.emp to extract Zin Zout impedance
of Ldmos transistor and ziogx242.emp for GaN transistor from Spice Models. These files contains optimization and goal
parameters set up to tune input and output circuit for maximum power and
gain. Use this files as basic templates for high power amplifier design.
Download TB-160 (AWR Version 11) , TB-160 (AWR Version 6.5) ;PushPull
Broadband 30-512 Mhz Amp with layout; or for users with older
Version 5. Also please download associated article.
Downlaad TB-221.
Broadband 200-2000 Mhz Amp using GaN transistor. GX3442
Downlaad TB-222.
Broadband 1-1000 Mhz Amp using GaN transistor. GX2441
Downlaad TB-235. Miltary 30 - 512 Mhz 100W, 20dB Gain, Amp using LDMOS transistor. LR2401
