Introducing Polyfet LS2641: 180W–250W Push-Pull RF Transistor for 1–1300MHz Applications

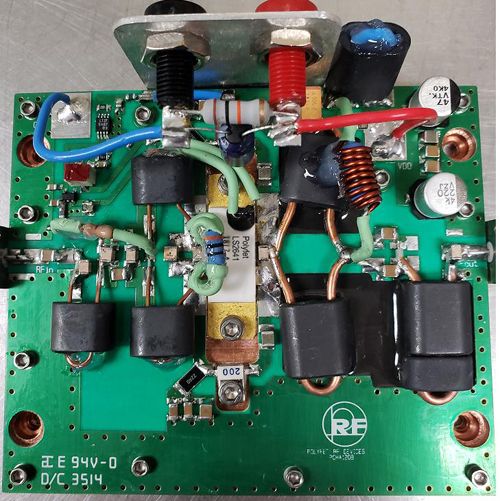

Polyfet's LS2641 is an unmatched, push-pull, discrete transistor designed for applications 1-1300MHz. When operated at 28VDC, the LS2641 delivers 180W P1dB (200W Psat) across 20-520MHz as demonstrated in the TB263 pictured. Its drain breakdown voltage rating of min 80VDC allows for reliable drain voltage operation up to 36VDC to deliver 250W. LS2641 data sheet and TB263 data package available at www.polyfet.com. Visit us at IMS 2025 booth # 1937.
